Fluke | Digital Multimeter

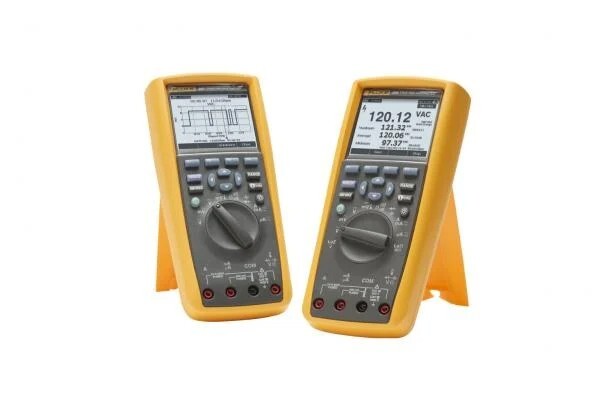

Fluke 289 True-RMS Data Logging Multimeter

The Fluke 289 True-RMS Data Logging Multimeter is a high-performance industrial logging multimeter designed to solve complex problems in electronics, plant automation, power distribution, and electro-mechanical equipment. With the ability to log data and review it graphically on-screen, it helps solve problems faster and minimize downtime..

  • Detail
  • Special Features
  • Specification

The Fluke 289 is engineered to meet the demanding needs of professionals who require reliable and precise measurements. Its TrendCapture™ feature allows users to graphically display logged data sessions to quickly identify anomalies. The LoZ Volts function ensures accurate voltage measurements by eliminating ghost voltages, making it ideal for testing the absence or presence of live power. The low pass filter enables accurate voltage and frequency measurements simultaneously on adjustable speed motor drives and other electrically noisy equipment. With a large 50,000 count display and optional wireless connectivity, the Fluke 289 provides enhanced visibility and remote monitoring capabilities. Its high accuracy and extended battery life make it a reliable tool for complex troubleshooting tasks.

  • TrendCapture™: Graphically displays logged data sessions to quickly determine whether anomalies may have occurred.

  • LoZ Volts: Low impedance voltage function for eliminating ghost voltages.

  • Low Pass Filter: For accurate voltage and frequency measurements at the same time on adjustable speed motor drives and other electrically noisy equipment.

  • Large Display: 50,000 count, 1/4 VGA dot matrix display with white backlight.

  • Wireless Connectivity: Compatible with Fluke Connect mobile app via the optional ir3000 FC infrared connector.

  • High Accuracy: Basic DC voltage accuracy of 0.025%.

  • Extended Battery Life: 100 hours minimum, 200 hours in logging mode.

Measurement Range / Resolution Basic Accuracy
DC Voltage 50.000 mV to 1000.0 V 0.025%
AC Voltage 50.000 mV to 1000.0 V 0.4% (True RMS)
DC Current 500.00 μA to 10.000 A 0.05%
AC Current 500.00 μA to 10.000 A 0.6% (True RMS)
Resistance 50.000 Ω to 500.0 MΩ 0.05%
Capacitance 1.000 nF to 100 mF 1.0%
Frequency 99.999 Hz to 999.99 kHz 0.005%
Temperature -200.0°C to 1350.0°C 1.0%
Low Impedance Voltage 50 mV to 1000 V -
Low Pass Filter - -
Display 50,000 count, 1/4 VGA dot matrix -
Battery Life 100 hours minimum, 200 hours in logging mode -
Wireless Connectivity Optional via ir3000 FC infrared connector -
Dimensions 222 x 102 x 60 mm -
Weight 870.9 g -
Safety Rating CAT III 1000 V, CAT IV 600 V -
